Unlock Your Home Comfort: Understanding Your HVAC System
Learn how your heating and cooling system works to make smarter decisions about comfort and efficiency
Your Heating, Ventilation, and Air Conditioning (HVAC) system works tirelessly behind the scenes to keep your home comfortable year-round. But how does it actually work? Understanding the basics can help you make smarter decisions about energy use, maintenance, and potential upgrades. Let’s demystify the magic!
Heating
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Ventilation
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Air Conditioning
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
How Does Air Conditioning Keep You Cool?
Think of your air conditioner not as something that creates cold, but as a machine that moves heat. It cleverly takes unwanted heat from inside your home and transfers it outside, leaving cooler, more comfortable air behind. It does this using a special substance called refrigerant and a cycle involving these key parts:
- Evaporator Coil (Indoor Unit): Warm indoor air is blown across these coils, which contain very cold, low-pressure liquid refrigerants.
- Heat Absorption: The refrigerant absorbs heat from the indoor air. This absorption causes the refrigerant to change from a cold liquid into a cool gas. The air blown back into your house is now cooler and dehumidified (as moisture condenses on the cold coils).
- Compressor (Outdoor Unit): The cool refrigerant gas travels to the compressor. The compressor pressurizes the gas, making it very hot and high-pressure.
- Condenser Coil (Outdoor Unit): This hot, high-pressure gas flows through the condenser coils. A fan blows outdoor air across these coils.
- Heat Release: The heat absorbed from your home now transfers from the hot refrigerant gas to the outdoor air. As it loses heat, the refrigerant condenses back into a warm liquid.
- Expansion Valve (Between Units): The warm liquid refrigerant passes through an expansion valve, which drastically lowers its pressure and temperature, making it very cold again.
- Cycle Repeats: This cold liquid refrigerant flows back to the evaporator coil inside your home, ready to absorb more heat.
How Does a Heat Pump Heat and Cool?
A heat pump is like a versatile, two-way air conditioner. It uses the same basic refrigeration cycle but adds a crucial component: a reversing valve. This allows it to move heat in either direction – out of your home in the summer (cooling) or into your home in the winter (heating).
- Cooling Mode: Works exactly like a standard air conditioner (see above). It absorbs heat from inside your home and releases it outside.
- Heating Mode: The reversing valve switches the flow of refrigerant.
- Heat Absorption (Outside): The outdoor coil now acts as the evaporator. Even when it’s cold outside, there’s still heat energy in the air. The cold refrigerant flowing through the outdoor coil absorbs this ambient heat, turning into a cool gas.
- Compressor: The compressor pressurizes this gas, making it very hot.
- Heat Release (Inside): The hot gas flows to the indoor coil (now acting as the condenser). Your indoor fan blows air across these hot coils.
- Warming Your Home: The heat transfers from the refrigerant to your indoor air, warming your house. As it loses heat, the refrigerant condenses back into a liquid.
Expansion Valve & Cycle Repeat: The liquid goes through the expansion valve, gets cold, and flows back outside to absorb more heat.

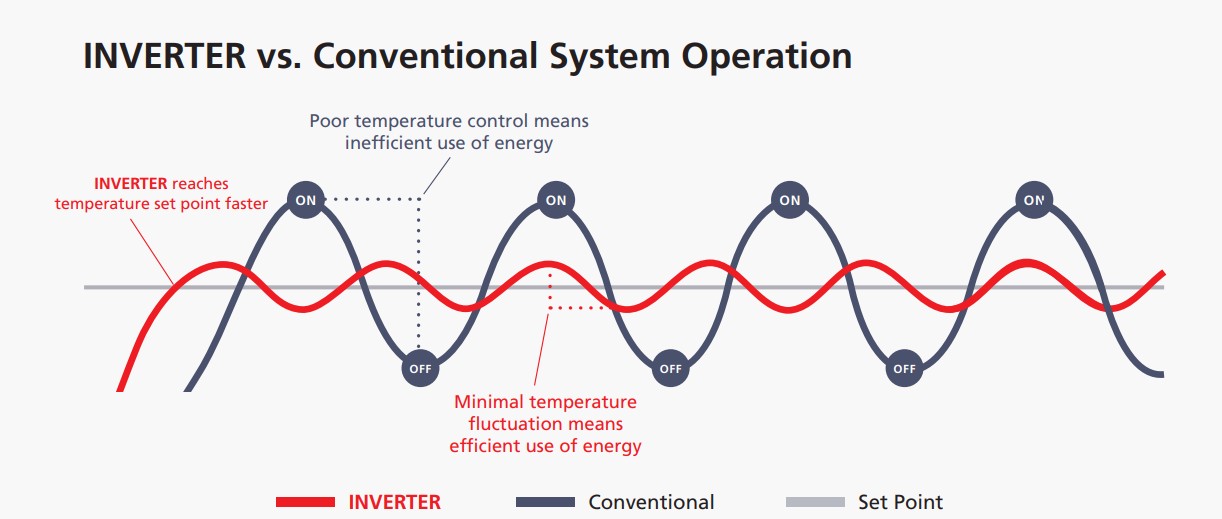

What is Variable Speed and Why is it a Game Changer?
Traditional HVAC systems often operate like a light switch: they’re either fully ON or fully OFF (single-stage), or maybe have a HIGH/LOW setting (two-stage). They blast air until the thermostat is satisfied, then shut off, leading to temperature swings and inefficient energy use.
Variable speed technology is different. It’s like having a dimmer switch for your HVAC.
- How it Works: Systems with variable speed compressors, indoor fans, and outdoor fans can adjust their operating speed across a wide range – often from around 40% up to 100% capacity (or even lower). Sophisticated controls continuously monitor your home’s heating or cooling needs and precisely adjust the system’s output to match that exact demand.
- Why It’s Better:
- Superior Energy Efficiency: Instead of constantly cycling on and off at full blast, variable speed systems run longer at much lower speeds most of the time. This uses significantly less electricity, just like a car uses less fuel cruising on the highway compared to stop-and-go city driving. This translates to lower energy bills.
- Consistent Comfort: By making tiny, continuous adjustments, variable speed systems maintain your desired temperature much more accurately. They virtually eliminate the hot and cold spots and uncomfortable temperature swings common with older systems.
- Quieter Operation: Running at lower speeds means the system is significantly quieter both inside and outside your home. No more loud startups and shutdowns disturbing your peace.
- Enhanced Dehumidification: During cooling, the longer, slower run times allow the system more time to pull moisture out of the air, leading to improved indoor comfort and reduced reliance on potentially overcooling to feel comfortable.
Improved Air Filtration: Longer run times mean the air circulates through your filter more continuously, potentially improving indoor air quality.
Ready to Experience Ultimate Comfort and Efficiency?
Understanding how your HVAC system works is the first step towards optimizing your home’s comfort and energy use. Modern systems, especially those with variable speed technology, offer incredible advancements in efficiency and comfort.
